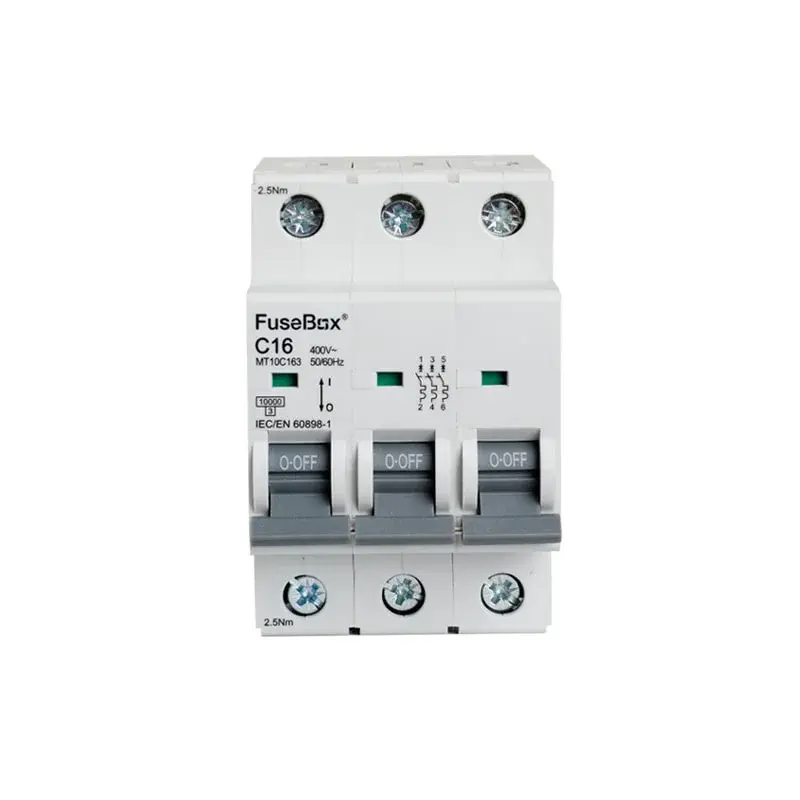

FuseBox MCB C Type 10kA 3 Pole

FuseBox MCBs (Miniature Circuit Breakers) with a 10kA breaking capacity are now available! Mainly used in FuseBox 3 phase distribution boards and in more industrial applications.

Available in a choice of poles, current ratings and tripping curves; please choose from the product options.

Din rail mountable and compatible with the FuseBox 3 phase boards. We also have 6kA circuit breakers in stock, in single pole only.

Specification

• Available in pole options: 1, 2 or 3 Pole
• Tripping characteristics options:
• - B Type, ideal for domestic or light commercial use.
• - C Type, for industrial use were inductive loads are present, will trip between 5 and 10 times the full load current.
• - D Type, used in applications that have a very high inrush current such as motors and transformers.
• Available in current ratings ranging from 6A to 63A.
• Breaking capacity: 10kA
• Standard: BS EN 60898-1
• IP rating: IP20
• Material: PA6 (Nylon 6)
• Voltage: 230V 50/60Hz
• Manufacturer: FuseBox
